Products Description

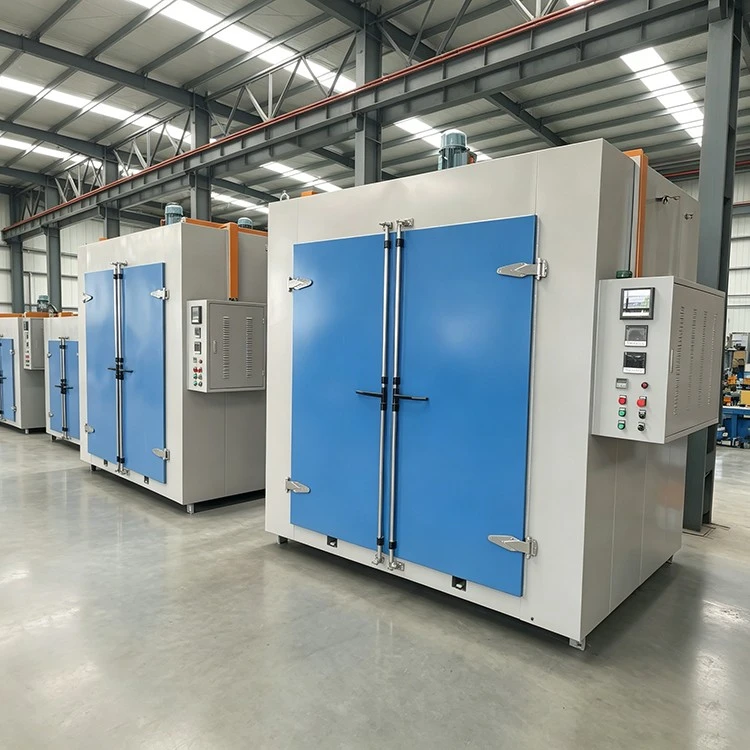

Motor Oven preheats motor stators, rotors, and windings before varnish impregnation, bakes and cures them afterward, and dries out residual moisture. The standard operating range is ambient +10°C to 200°C. Chamber dimensions and heating power are configured to match customer workpieces and throughput, not off-the-shelf sizing.
Working Principle
A Motor Oven uses SUS304 stainless steel finned tubes in the side air ducts as the heat source. A top-mounted circulation fan pushes hot air downward through the side ducts into the working chamber; air returns through the bottom and keeps circulating for fairly even chamber temperature.
Product Structure

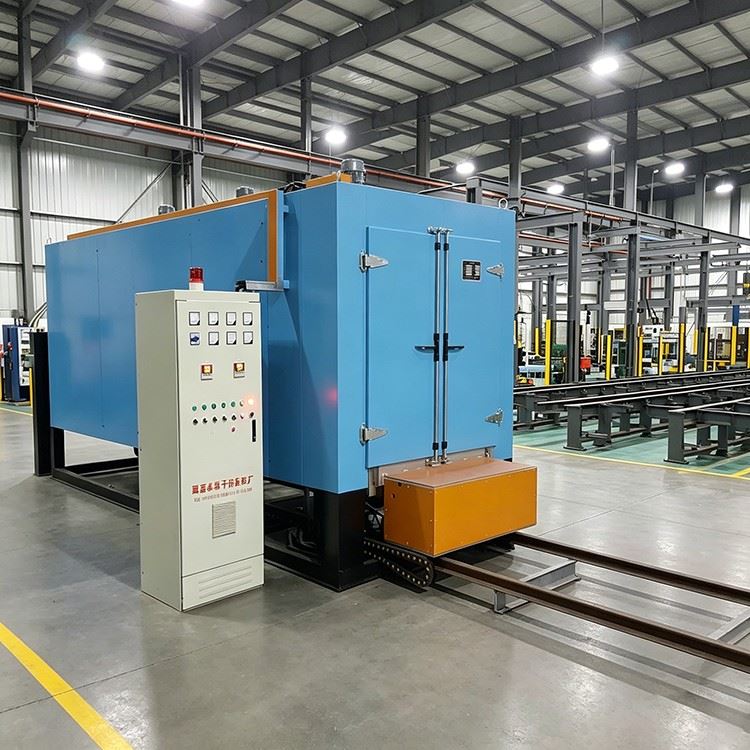

The Motor Oven consists of SUS304 stainless steel finned tubes, side air ducts, a top-mounted circulation fan, working chamber, bottom return air path, main controller, and independent monitoring instrument. Loading can be truck, suspension, or trays.
Technical Specifications
Technical specifications for the Motor Oven are listed below as provided:
| Technical Specifications | |
|---|---|
| Operating temperature range | ambient +10°C to 200°C |
| Temperature uniformity | plus or minus 1°C (30 minutes after stabilization) |
| Temperature control accuracy | plus or minus 0.1°C |
| Heating method | Electric heating (SUS304 stainless steel finned tubes) |
| Heating power | 12kW to 120kW (configured by chamber volume) |
| Heat-up rate | Approximately 4 to 6°C per minute (no load) |
| Air circulation | Top supply, side entry, bottom return |
| Control system | Main controller + monitoring instrument, PID regulation |
| Over-temperature protection | Independent monitoring instrument, cuts heating and triggers alarm upon over-temperature |
| Loading method | Truck / suspension / trays (optional) |
| Power supply | 380V to 480V, 3-phase, 50/60Hz (customized to customer's local industrial voltage) |
| Surface temperature rise | ≤ ambient +15°C |
Control & Safety
The Motor Oven runs a main controller as the primary regulator, paired with a separate monitor set 5°C to 10°C higher than the main setpoint. If temperature exceeds the monitor threshold, heating cuts immediately and an audible and visual alarm triggers. Surface temperature rise: ≤ ambient +15°C.
Applications
Motor Oven is typically used by motor manufacturers, motor repair shops, and transformer production lines for insulation treatment.
Closing
Nanjing Zhuoding Heating Equipment Co.,Ltd. manufactures and sells ovens, mixers, and pharmaceutical equipment. Send your workpiece size, throughput, and local industrial voltage to get a Motor Oven selection and quotation. Inquiry welcome.
