Coating Curing Oven
Your Professional Coating & Curing Oven Supplier
This category of equipment is specifically designed for curing and drying of surface coatings on various workpieces, suitable for paints, powder coatings, epoxy resins, Teflon, enamel, and other coating materials. Employing electric or gas heating methods combined with precise temperature control systems, these ovens ensure that coating performance indicators such as adhesion, hardness, and gloss meet process requirements. Widely used in automotive parts, hardware products, pipe anti-corrosion, electronic components, and other industries. Working chamber dimensions, temperature ranges, and explosion-proof ratings can be customized according to customer requirements, supporting both batch and continuous production modes.
-
![Electric Heating Oven]()
Electric Heating OvenThe electric heating oven is a general-purpose electric heating unit suitable for drying, curing, preheating, and aging processes.read more -
![Enamel Baking Oven]()
Enamel Baking OvenThe enamel baking oven is used for melting and sintering of enamel coatings (wet or dry application). After application, the enamel coating requires high-temperature melting to bond the vitreous...read more -
![Teflon Coating Curing Oven]()
Teflon Coating Curing OvenThe Teflon coating curing oven is used for high-temperature sintering and curing of PTFE, FEP, PFA, and other fluororesin coatings.read more -
![Epoxy Curing Oven]()
Epoxy Curing OvenThe epoxy curing oven is used for curing epoxy resin materials, including epoxy coatings, epoxy adhesives, and epoxy composites.read more -

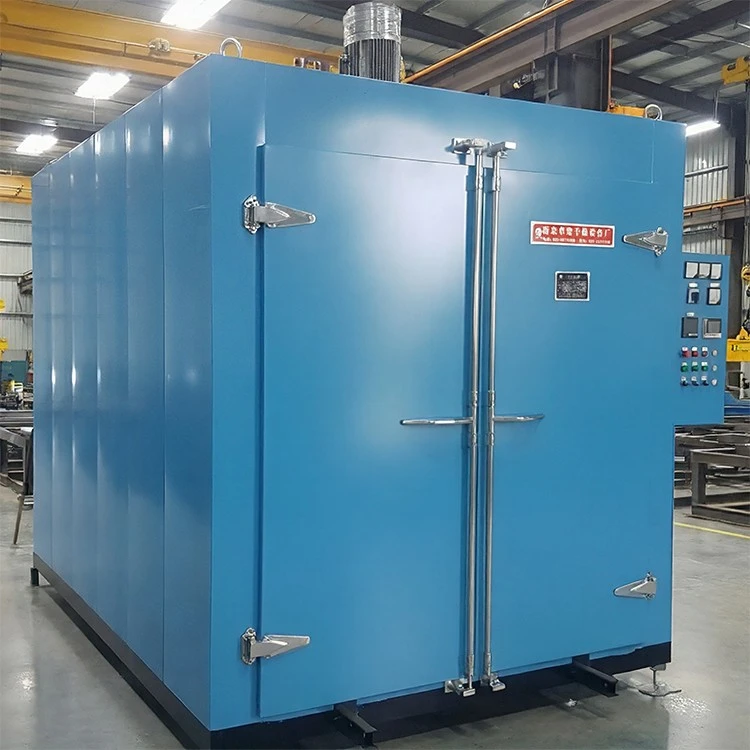

![Paint Baking Oven]()
Paint Baking OvenThe paint baking oven is used for baking and curing wet paint films on workpieces after spray application. Suitable paint types include solvent-borne paints, waterborne paints, and high-solid paints.read more -
![Powder Coating Curing Oven]()
Powder Coating Curing OvenThe powder coating curing oven is designed for melting, leveling, and curing of powder coatings on workpieces after electrostatic spraying. The equipment uses electric heating, with heating power...read more -
![Curing Oven]()
Curing OvenThe curing oven is a general-purpose thermal curing unit suitable for heat curing of various coatings and adhesives.read more -
![Electrical Heating Oven]()
Electrical Heating OvenElectric heating oven is a kind of equipment which makes the electric heat pipe heat by power supply and forms the circulating wind through blower to achieve the temperature uniformity, so as to...read more -
![Industrial Curing Oven]()
Industrial Curing OvenIndustrial curing ovens have the advantages of high energy efficiency, short processing time, small volume and low thermal impact.The industrial curing oven are widely used in printing, painting,...read more -
![Electrically Heated Oven]()
Electrically Heated OvenElectrically heated oven is an industrial drying equipment that converts electrical energy into heat energy, providing efficient and safe heating and drying solutions for various industries...read more -
![Curing Drying Oven]()
Curing Drying OvenThe curing drying oven is a type of equipment used for drying, curing, ageing and other treatments, which is widely used in laboratories, factories and industrial production. Its main function is...read more -
![Electric Drying Oven]()
Electric Drying OvenThe electric drying oven is a device used for drying, baking, melting wax, and sterilization.read more
It converts electrical energy into thermal energy, which is then used by industrial and mining...
Why choose us
Uniform and Efficient Heating
The coating curing oven uses a well-designed heating system to provide efficient heat transfer and consistent temperature distribution, helping coatings cure more evenly across different workpieces.
Precise Temperature Control
An intelligent digital temperature controller with PID adjustment provides accurate temperature regulation. This helps maintain stable curing conditions and supports consistent coating quality from batch to batch.
Customized Oven Design
We offer a variety of transmission components, including sprockets, roller chains, gears, couplings, racks, hubs, pulleys, taper sleeves, bearing seats, and more.
Reliable Insulation & Protection
The oven uses an insulated chamber structure designed to reduce heat loss and limit the effect of external surface temperature. Protection functions include leakage, short-circuit, overload, and over-temperature protection.

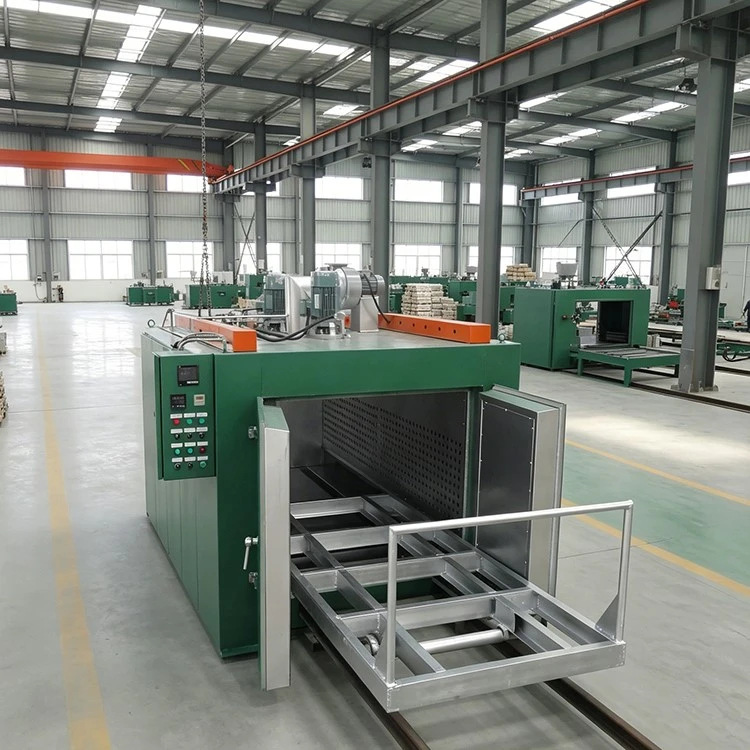

Curing Oven
Product Description
The curing oven is a general-purpose thermal curing unit suitable for heat curing of various coatings and adhesives.
The equipment uses electric heating with a forced hot air circulation system to ensure uniform temperature distribution within the working chamber. The temperature control system employs PID regulation and supports multi-stage ramp-soak program settings. Working chamber dimensions, temperature ranges, and loading methods are customized to customer requirements. The curing oven is suitable for general industrial coating curing, adhesive curing, and electronic component encapsulation curing processes.
Technical parameters
Operating temperature range: ambient +10°C to 250°C (higher on request)
Temperature uniformity: ±2.5°C (30 minutes after stabilization)
Temperature control accuracy: ±1°C
Heating method: Electric heating (stainless steel tubular heaters)
Air circulation method: Forced convection, side supply with top return
Control system: PLC + PID control, touchscreen HMI
Safety protection: Over-temperature, overload, and phase-loss protection
Power supply: 380V, 3-phase, 50/60Hz
Equipment surface temperature rise: ≤ ambient +15°C
Applications of Curing Oven
The curing oven is widely used in many fields.
Electronics and electrical industry
01
New energy industry
02
Composite materials
03
Rubber and plastic industry
04
Coating & surface treatment
05
Types of Industrial Drying Ovens
Electric Drying Oven
The electric drying oven is a device used for drying, baking, melting wax, and sterilization.
It converts electrical energy into thermal energy, which is then used by industrial and mining enterprises, laboratories, scientific research institutions, etc. for drying, baking, melting wax, and sterilization.
Curing Drying Oven
The curing drying oven is a type of equipment used for drying, curing, ageing and other treatments, which is widely used in laboratories, factories and industrial production. Its main function is to make the air flow in the box through heating and ventilation, so that the water on the surface of the item evaporates to achieve the effect of drying.
Industrial Curing Oven
Industrial curing ovens have the advantages of high energy efficiency, short processing time, small volume and low thermal impact.The industrial curing oven are widely used in printing, painting, electronic manufacturing, medical equipment and other industries.
Powder Coating Curing Oven
The powder coating curing oven is designed for melting, leveling, and curing of powder coatings on workpieces after electrostatic spraying. The equipment uses electric heating, with heating power configured based on chamber volume, typically ranging from 18kW to 150kW.
Paint Baking Oven
The paint baking oven is used for baking and curing wet paint films on workpieces after spray application. Suitable paint types include solvent-borne paints, waterborne paints, and high-solid paints.
Epoxy Curing Oven
The epoxy curing oven is used for curing epoxy resin materials, including epoxy coatings, epoxy adhesives, and epoxy composites.The epoxy curing oven is suitable for electronic component potting, pipe anti-corrosion coatings, composite bonding, and flooring material curing.
Working principle
Heating: Electric heating elements generate heat, which is transferred to the interior of the oven through thermal radiation and hot air circulation, bringing the working area to the set temperature.
Hot Air Circulation: A circulating fan drives hot air through the furnace, distributing heat more evenly around the workpiece and reducing temperature differences between different locations.
Coating Heating and Curing: After absorbing heat, the surface coating gradually reaches the process temperature. For powder coatings, the powder melts, flows, and then cross-links and cures; for liquid coatings, adhesives, or other materials, drying, evaporation, or chemical curing occurs according to the formulation and process requirements.
Automatic Temperature Control: Temperature sensors monitor the oven temperature in real time and feed the signal back to the control system. A PID temperature controller automatically adjusts the heating output according to the set value, maintaining a relatively stable operating temperature in the oven.
Heating and Curing Completion: After the workpiece is held at the specified temperature for a sufficient time, the coating reaches the required degree of curing. Heating is then stopped, and natural cooling or other cooling treatments are performed according to production requirements.
Our Certifications
FAQ
What kind of factory are you? What products do you make？
We are Nanjing Zhuoding Heating Equipment, a professional manufacturer of industrial ovens, drying ovens, trolley/kiln furnaces, explosion-proof ovens, drum ovens, and hot-air circulation ovens, serving the pharmaceutical, chemical, electronics, new-material, food and machinery industries.
Do you support non-standard / custom ovens?
Yes. Chamber dimensions, temperature range, heating method, trolley structure, explosion-proof design, materials and PLC control can all be customized to your process.
What parameters should I provide when customizing an oven?
Chamber L×W×H, maximum operating temperature, ramp-up time, material name, batch loading weight, whether the material is flammable/explosive, power supply, and site dimensions.
What is the minimum order quantity (MOQ)?
Standard models: 1 unit minimum. Custom ovens can also be produced from a single unit.
