Product Concept

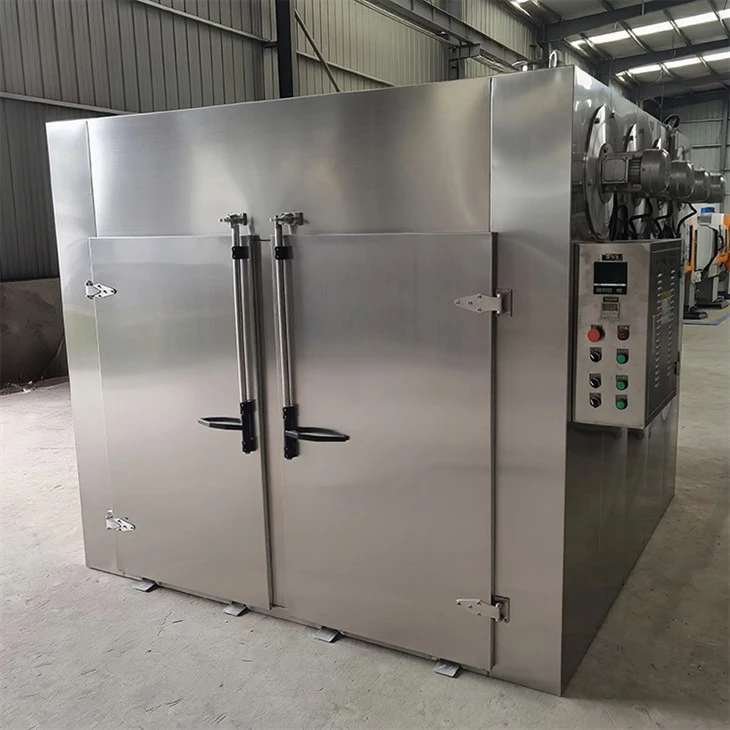

Electrically heated oven is an industrial drying equipment that converts electrical energy into heat energy, providing efficient and safe heating and drying solutions for various industries through precise temperature control system and optimised hot air circulation design.
Temperature Control
This type of electrically heated oven adopts an intelligent programme temperature controller to control the temperature, PID parameters are self-tuning, solid-state relay power adjustment, non-contact continuous adjustment, and automatically completes the whole drying process, which can meet the requirements of any curing curve, easy to operate and reliable in performance. Equipped with a thermal element probe to form an automatic constant temperature control. The temperature control accuracy is sensitive, and the room temperature ~300°C can be set arbitrarily. The temperature in the working room can be read directly from the meter. The constant temperature time can reach 99.99H.




Technical Parameters
|
Model NO. |
Dimension of working chamber W×D×H (mm) |
Temperature |
|
HG101-1A |
350×450×450 |
300℃ |
|
HG101-2A |
450×550×550 |
|
|
HG101-3A |
500×600×750 |
|
|
HG101-4A |
800×800×1000 |
|
|
HG101-5A |
800×1000×1000 |
|
|
HG101-6B |
1000×1200×1200 |
500℃ |
|
HG101-7B |
1000×1200×1500 |
|
|
HG101-8B |
1200×1500×1800 |
|
|
HG101-9B |
1500×1800×2000 |
|
|
HG101-10B |
1800×2000×2000 |
|
|
HG101-11B |
2000×2000×2000 |
The above list is the detailed information of electrically heated oven, more in-depth technical information, please contact our engineers, the company Tel: 025-85710008/ 85710818; Nanjing Zhuo Ding Heating Equipment Co.,Ltd.
