Product Description

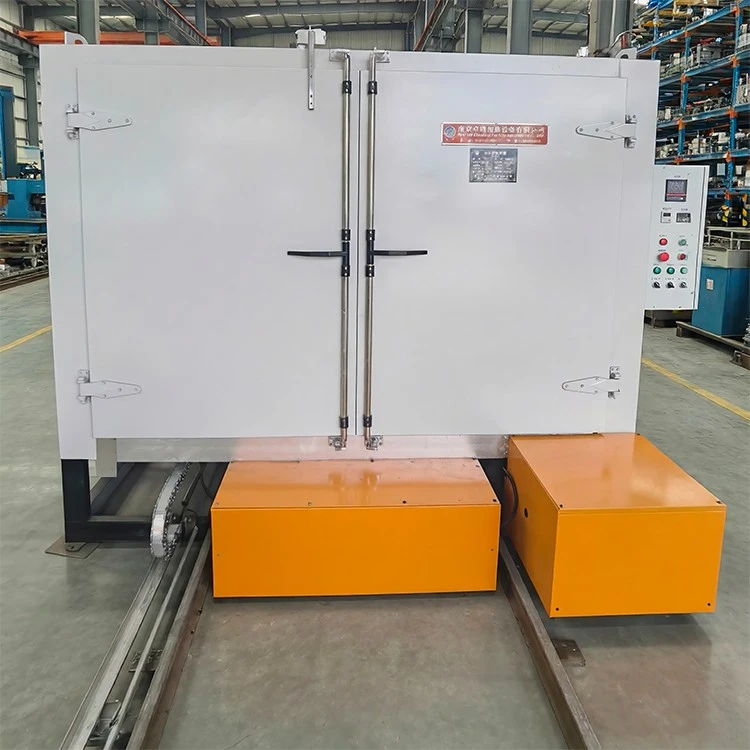

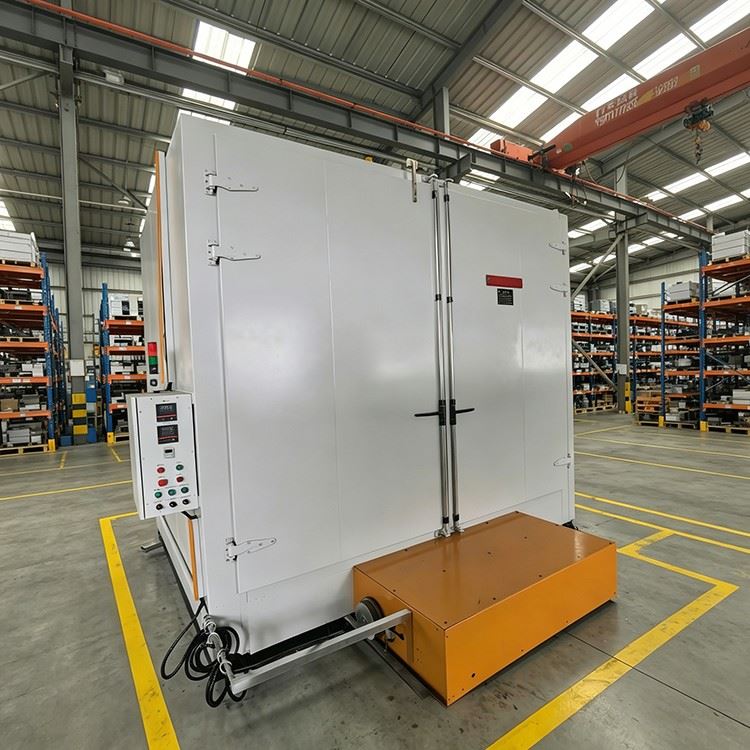

The Motor Rotating Oven handles motor rotors, stators, and complete motors in a rotating state for uniform heating and drying. A rotation drive sits inside the working chamber and keeps workpieces turning through the whole cycle, avoiding uneven heating seen with stationary loads. Rotation speed is adjustable via gear motor and variable-frequency drive. Heating is electric; SUS304 stainless steel finned tubular heaters are in the side air ducts. A top fan pushes hot air down through the side ducts into the chamber, and air returns through the bottom duct for forced circulation. Operating range: ambient +10°C to 180°C.
Working Principle
In the Motor Rotating Oven, the rotation drive turns workpieces continuously while the top fan drives hot air through side ducts and finned tubular heaters into the chamber; air returns from the bottom duct. Rotation speed: 0.5 to 5 rpm, adjustable by gear motor and variable frequency control.
Product Structure

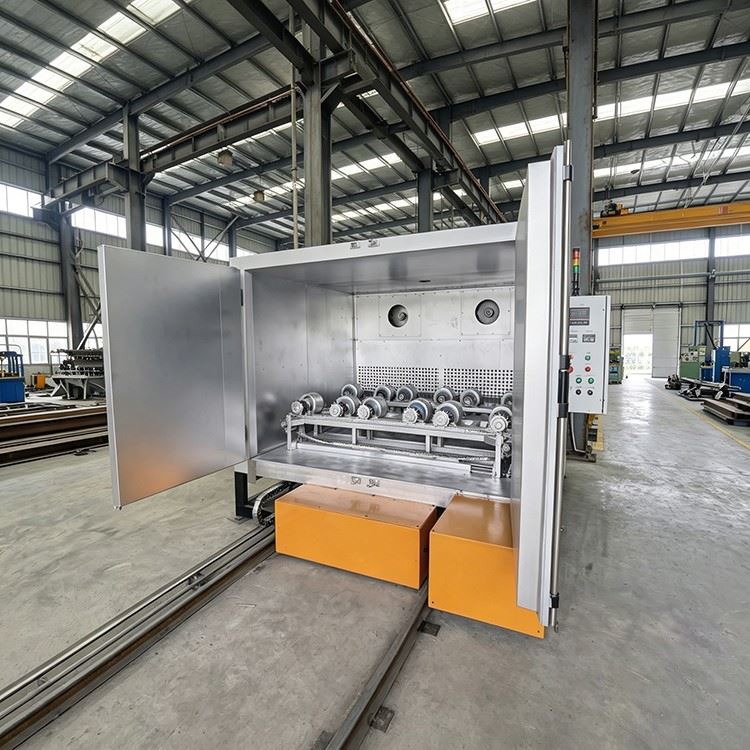

The Motor Rotating Oven includes working chamber, internal rotation drive, gear motor, VFD, SUS304 stainless steel finned tubular heaters, side air ducts, top fan, bottom return duct, main controller, and independent monitor. Chamber dimensions, station count, and heating power are matched to customer parts and throughput.
Technical Specifications
| Technical Specifications | |
|---|---|
| Operating temperature range | ambient +10°C to 180°C |
| Temperature uniformity | plus or minus 1°C |
| Temperature control accuracy | plus or minus 0.1°C |
| Heating method | Electric heating (SUS304 stainless steel finned tubular heaters) |
| Heating power | 15kW to 100kW (configured by chamber volume) |
| Heat-up rate | Approximately 4 to 6°C per minute (no load) |
| Rotation drive | Gear motor, variable frequency control |
| Rotation speed | 0.5 to 5 rpm (adjustable) |
| Air circulation | Top supply, side entry, bottom return |
| Control system | Main controller + monitoring instrument, PID regulation |
| Over-temperature protection | Independent monitoring instrument, cuts heating and triggers alarm upon over-temperature |
| Power supply | 380V to 480V, 3-phase, 50/60Hz (customized to customer's local industrial voltage) |
| Surface temperature rise | ≤ ambient +15°C |
Control & Safety
The Motor Rotating Oven runs a main controller paired with an independent monitor set 5°C to 10°C higher than the main setpoint. If temperature exceeds the monitor threshold, heating is cut and an audible/visual alarm fires. Surface temperature rise: ≤ ambient +15°C.
Applications
Motor Rotating Oven is typically used by medium and large motor manufacturers, wind turbine generator service shops, and marine motor repair facilities.
Closing
Nanjing Zhuoding Heating Equipment Co.,Ltd. supplies Motor Rotating Oven selection. Send workpiece details, throughput, and local industrial voltage to get a quotation. Inquiry welcome.
