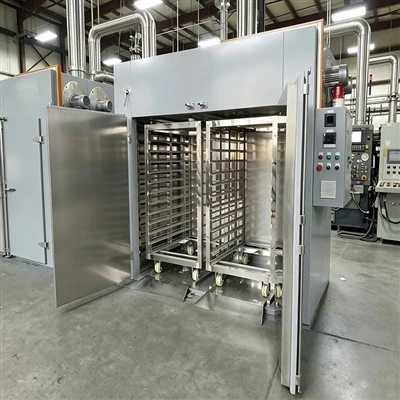

Vertical Blast Drying Oven

Our Vertical Blast Drying Oven uses a vertical airflow pattern. The fan drives hot air upward or downward through the chamber, meeting specific airflow-direction requirements. It is mainly used in laboratories, research institutes, and small-batch production for drying, baking, sterilization, and similar heat treatment. Its compact footprint fits tight lab or workshop spaces.

Our Vertical Blast Drying Oven is electrically heated. SUS304 stainless steel finned tubes are installed in the bottom or side air ducts. The main controller works with an independent monitor, and trays or shelves are optional. Chamber dimensions and heating power are configured by material and throughput.

Our Vertical Blast Drying Oven uses vertical supply and bottom or top return. The main controller provides PID regulation, while the independent monitor is set 5–10°C higher for safety trip. On over-temperature, heating cuts off and the alarm triggers. Automatic cyclic dehumidification is adjustable by interval.

Our Vertical Blast Drying Oven has the following specifications:

Operating temperature range: ambient +10°C to 300°C

Temperature uniformity: ±1°C

Temperature control accuracy: ±0.1°C

Heating method: Electric heating (SUS304 stainless steel finned tubes)

Heating power: 3kW to 60kW (configured by chamber volume)

Heat-up rate: Approx. 4–6°C/min (no load)

Air circulation: Vertical supply, bottom or top return

Control system: Main controller + monitoring instrument, PID regulation

Over-temperature protection: Independent monitoring instrument; cuts heating and triggers alarm upon over-temperature

Dehumidification system: Automatic cyclic dehumidification with adjustable interval

Loading method: Trays / shelves (optional)

Power supply: 380V to 480V, 3-phase, 50/60Hz (customized to customer's local industrial voltage)

Surface temperature rise: ≤ ambient +15°C

Our Vertical Blast Drying Oven is commonly used for drying in electronics, chemical, pharmaceutical, and food industries, as well as in laboratories, research institutes, and small-batch production.
