Product Concept

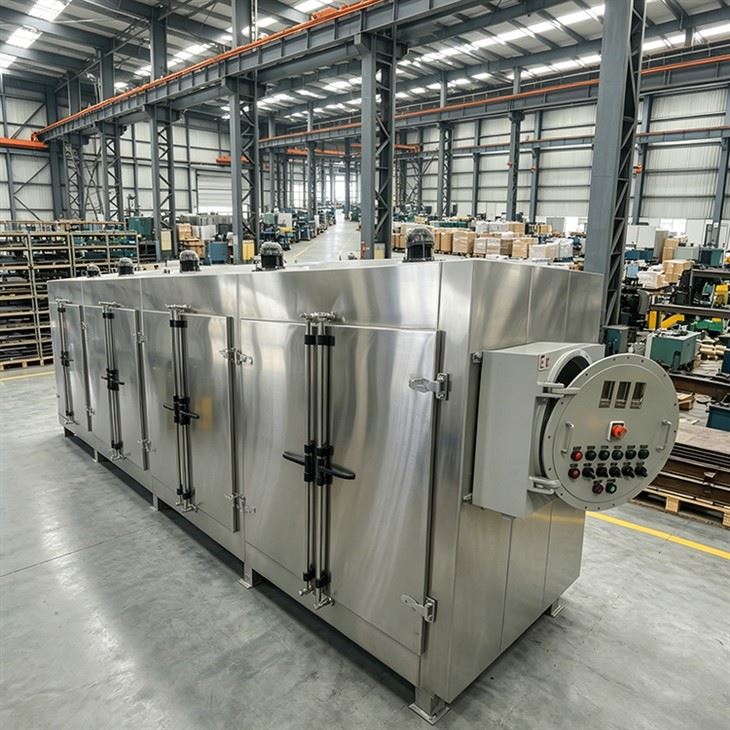

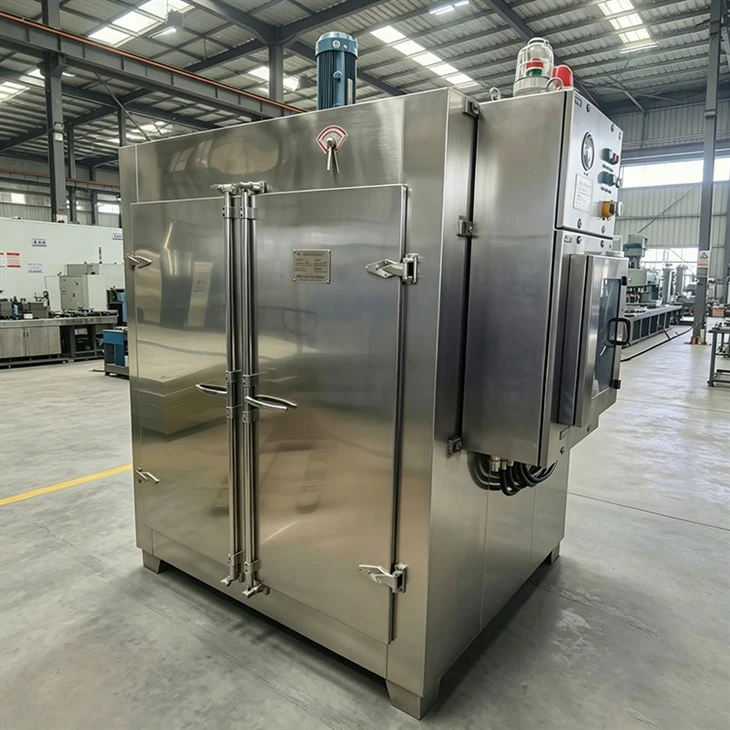

The explosion-proof drying oven is industrial equipment specially designed for safe drying operations in flammable and explosive atmospheres. The explosion-proof drying oven heating uses an explosion-proof heating tube, and the controller employs a Japanese Fuji microcomputer intelligent controller, which has the characteristics of good temperature uniformity and high temperature control accuracy.
Working principle
The explosion-proof drying oven operates on a forced convection heating principle. Heated air circulates uniformly through the chamber via explosion-proof blowers, ensuring consistent drying. Any flammable vapors released from the product are kept below ignition concentration through continuous ventilation. The electrical components are sealed or purged to prevent spark ignition, while the robust cabinet contains any potential internal deflagration without rupture.
Core features
Explosion-proof Certification
Compliant with ATEX, IECEx, or NEC standards for Zone 1/2 hazardous areas
Rugged Double-wall Construction
Heavy-gauge steel with insulation barrier for thermal efficiency and structural integrity
Precision Temperature Control
PID controller with ±1°C accuracy and programmable profiles
Spark-free Interior
Fan motors and heaters are sealed; no exposed ignition sources inside the chamber
Pressure Relief Mechanism
Designed to safely vent combustion gases in rare overpressure events
Stainless Steel Chamber
304 or 316L grade options for corrosion resistance and easy cleaning
Safety Interlocks
Door switches, over-temperature protection, and fault alarm systems
Flexible Configurations
Available in benchtop to walk-in sizes with various heating methods
Operation Points
1. Turn on the fan to ensure that the object is placed in the oven when the oven air is in the exhaust state.
2. After closing the oven door, circulate the exhaust (more than 4 times the volume of the studio) and then turn on the heating switch to allow a large amount of organic vapor that evaporates at room temperature to be discharged from the oven first.
3. The heating power increases gradually to avoid temperature overshoot so that the surface temperature of the heating tube or the temperature inside the oven exceeds the self-ignition temperature of the organic vapor.
4. When the user sets the heating temperature, it must be set according to the upper limit of the temperature uniformity index of the oven and the upper limit of the temperature fluctuation.
5. When the tray holding the object to be dried is pushed into the shelf, the speed should not be too fast. There should be no liquid solvent left in the tray. It is strictly forbidden for liquid solvent to drip to the heat transfer part at the bottom of the studio.
6. When installing and positioning the drying oven, the distance between the wall and the oven can be calculated according to the following formula. If it is less than 3m3, the spacing should not be less than 0.6m.
Industries Served
Chemical & Petrochemical
Drying catalysts, resins, and solvent-wet materials
Pharmaceutical
API drying and solvent removal in explosive dust environments
Coatings & Paints
Curing solvent-based coatings safely
Battery Manufacturing
Electrode drying with organic solvent recovery
Aerospace & Defense
Processing flammable composites and propellants
Food & Flavor
Ethanol extraction and drying operations
For detailed information and in-depth technical information about explosion-proof drying oven, please contact our engineers, company phone: 025-85710008/ 85710818; Nanjing Zhuoding Heating Equipment Co., Ltd.
