Electric Trolley Oven

Electric Trolley Oven

The door and the body of the thermal oil heating oven are sealed with high temperature resistant silicone rubber strips, which have good sealing performance and elegant overall shape. The heating methods of this drying equipment include thermal oil circulation system heating and electric heating.
Send Inquiry

Product Concept



The door and the body of the thermal oil heating oven are sealed with high temperature resistant silicone rubber strips, which have good sealing performance and elegant overall shape. The heating methods of this drying equipment include thermal oil circulation system heating and electric heating. The temperature control form adopts intelligent digital display automatic temperature control system and PID adjustment function. At the same time, it adopts contactless drive heating function (no contact noise, stable working current fluctuation). Full-scale constant temperature microcomputer timing.

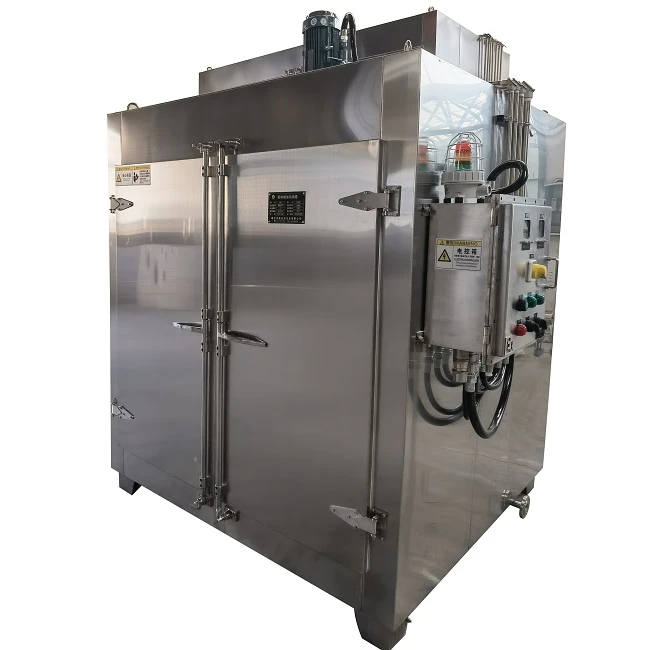

product-650-650



Product Features



① Able to obtain a higher working temperature under lower operating pressure
② Stable heating and more precise temperature regulation can be performed.
③ The drying room heats up quickly and the temperature is relatively stable.
④ It has complete operation control and safety monitoring devices;
⑤ Low operating cost.
⑥ High thermal efficiency and good economy.



Technical Parameters



Model NO.

TR-4

TR-8

TR-8

TR-16

TR-24

TR-32

TR-32

Dimension of working chamber W×D×Hmm

1600×1500×1450mm

1600×1500×2800mm

2950×1500×1450mm

3150×1500×2800mm

4900×1500×2800mm

6550×1500×2800mm

3150×2800×2800mm

Design temperature(indoor temperature)

-120℃

-120℃

-120℃

-120℃

-120℃

-120℃

-120℃

Circulation fan power

1.1KW

1.5KW

1.1KW×2

1.5KW×2

1.5KW×3

1.5KW×4

4KW×2

Heating power (Electric heating source)

9KW

19KW

19KW

30KW

42KW

50KW

50KW

Heat dissipation area (Steam heating source)

20㎡

40㎡

40㎡

75㎡

110㎡

158㎡

158㎡

Temperature fluctuation

±1℃

±1℃

±1℃

±1℃

±1℃

±1℃

±1℃

loading(200L/barrel) (ton barrel)

4

1

8

2

8

2

16

4

24

6

32

8

32

8

Overall dimension W×D×Hmm

2050×1980×2480mm

2050×1980×3750mm

3600×1980×2450mm

3600×1980×3750mm

5350×1980×3750mm

7000×1980×3750mm

3600×3300×3650mm

Supply Voltage

3-380V 50HZ

3-380V 50HZ

3-380V 50HZ

3-380V 50HZ

3-380V 50HZ

3-380V 50HZ

3-380V 50HZ



For detailed information and in-depth technical information about thermal oil heating oven, please contact our engineers, company phone: 025-85710008/85710818; Nanjing Zhuoding Heating Equipment Co., Ltd.
